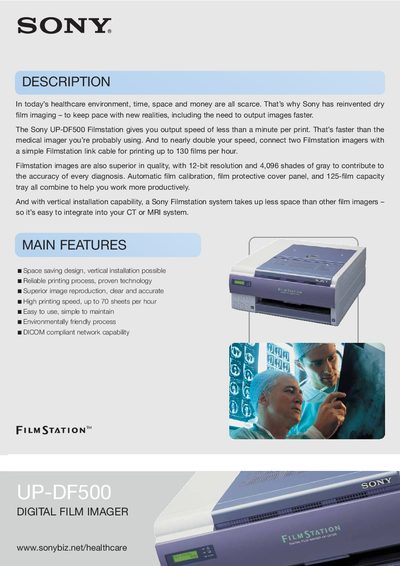

The Sony UP-DF500 Digital Film Imager is a dry film imaging system for medical applications. It features space saving design, vertical installation, reliable printing process, superior image reproduction, high printing speed, easy to use and maintain, and environmentally friendly process.
The UP-DF500 Filmstation is a direct‑thermal digital film imager designed for fast, high‑quality diagnostic imaging in healthcare environments. It offers vertical installation, a compact footprint (600 × 250 × 686 mm) and a 55 kg weight, making it easy to integrate into CT or MRI suites.
The manual covers main features such as up to 70 sheets per hour printing speed, 12‑bit 320 dpi resolution, DICOM network capability, and environmentally friendly dry‑processing technology. It also includes detailed specifications, safety standards, optional accessories, and step‑by‑step instructions for setup, film loading, and maintenance.
| Printing method | Direct thermal printing |
|---|---|
| Resolution | 320 dpi |
| Processing data depth | 12 bit |
| Effective print pixels | 5,060 × 4,224 dots |
| Media size | 354 × 430 mm (14 × 17 in) |
| Print area | 335.3 × 401.6 mm |
| Film tray capacity | 125 sheets |
| Printing speed | 70 sheets per hour |
| Dimensions (W × H × D) | 600 × 250 × 686 mm |
| Mass | Approx. 55 kg |
| Power consumption | Approx. 450 W |
| Interface | DICOM |
The Filmstation can print up to 70 sheets of film per hour.
It measures 600 × 250 × 686 mm and weighs approximately 55 kg.
It uses Sony Blue Thermal Film (UPT‑517BL) sized 354 × 430 mm (14 × 17 in).
Yes, both the interface and image formats are DICOM.
