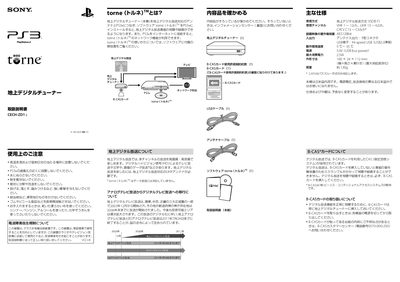

CECH-ZD1 J is a terrestrial digital tuner that can be connected to PS3® and installed with torne (トルネ) TM software, allowing you to watch and record terrestrial digital broadcast programs. In addition, when connected to the internet, the network function of torne (トルネ) TM can be used.
This manual outlines important safety precautions such as avoiding high temperatures, direct sunlight, moisture, strong impacts, and unauthorized disassembly. It also explains the B‑CAS card system required for digital broadcast reception and the legal notices related to the device.
The guide details how to connect the tuner to a TV and PlayStation 3 using the supplied antenna and USB cables, describes the device specifications, and provides warranty, service, and after‑sales support information. This manual is written in Japanese.
| Reception channels | VHF112ch, UHF13‑62ch, CATV13‑C63ch |
|---|---|
| Recording protection | AES128bit |
| Antenna input connector | F‑type connector |
| USB port | Hi‑speed USB (USB2.0 compliant) |
| Operating temperature | 5 °C – 35 °C |
| Power supply | 5.0 V (USB bus power) |
| Maximum power consumption | 2.5 W |
| Dimensions | 100 mm × 24 mm × 112 mm |
| Weight | ≈130 g |
A B‑CAS card must always be inserted into the tuner for digital broadcast reception.
Connect the tuner to the PS3 directly with the supplied USB cable; do not use a USB hub.
The device operates from a 5.0 V USB bus power source and consumes up to 2.5 W.
