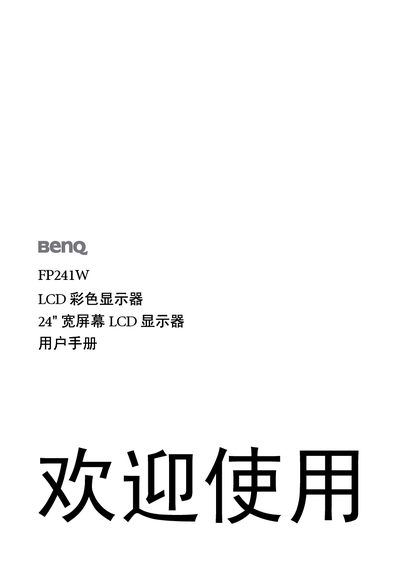

This document is the user manual for FP241W LCD color monitor, which introduces the usage, safety instructions, maintenance and cleaning, adjustment, and installation of the monitor.
This manual guides you through unpacking, assembling, and connecting the BenQ FP241W 24‑inch LCD monitor. It covers safety precautions, hardware assembly, height and tilt adjustments, and optional rotation.
The document also explains how to configure display settings on Windows, optimize image quality, use the OSD menu, and resolve common issues such as power, image distortion, and OSD lock. Technical specifications and environmental limits are listed at the end. This manual is written in Chinese.
| Display Size | 24.0 inches (611.32 mm) Active TFT |
|---|---|
| Maximum Resolution | 1920 x 1200 |
| Contrast Ratio | Typical 1000:1, Minimum 700:1 |
| Brightness | Typical 500 cd/m², Minimum 400 cd/m² |
| Response Time | Typical 16 ms, Maximum 20 ms (GTG 6‑10 ms) |
| Viewing Angle | Typical 178°/178°, Minimum 150°/150° |
| Power Consumption | Maximum < 95 W (no USB), Standby < 1 W |
| Input Signals | RGB, DVI‑D, Composite, Component, S‑Video, HDMI, 15‑pin mini D‑Sub |
Unplug the monitor from the wall outlet, then clean the LCD surface with a non‑abrasive cloth; avoid any liquids, wetting agents, or glass cleaners.
Hold the ENTER key for 15 seconds to access the OSD Lock option and change it to OFF, or use the t or u key to navigate to the OSD Settings submenu and disable the lock.
Check the power connection and adjust the screen resolution and refresh rate as described in the “How to Adjust the Monitor” section.
