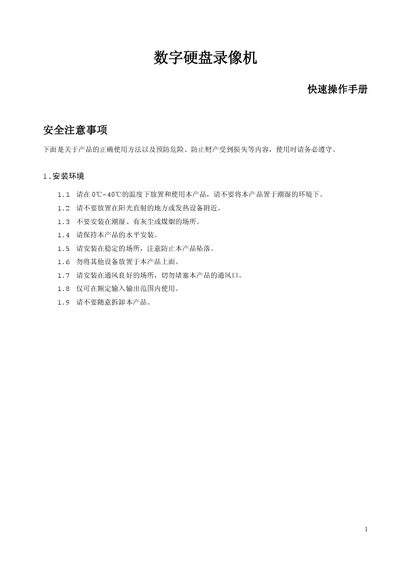

This manual details the installation and use of digital hard disk recorders, including unpacking inspection, cable connection, hard disk installation, and front panel button introduction.
This guide provides safety precautions, installation environment requirements, and step‑by‑step instructions for unpacking, connecting cables, and installing the hard disk. It also describes the functions of front‑panel buttons and rear‑panel interfaces, including video, audio, network and alarm ports.
Additional sections cover basic software operation, preview display, recording controls, image capture settings, PTZ (pan‑tilt‑zoom) configuration, and web access procedures. The manual emphasizes proper ventilation, temperature limits, and security measures such as changing default passwords. This manual is written in Chinese.
| Operating temperature | 0°C‑40°C |
|---|---|
| Maximum hard disks | 1 |
| Recommended hard disk speed | 7200 RPM or higher |
| Rear panel channel options | 4, 8 or 16 channels |
The device should be placed and used within 0 °C to 40 °C.
Only one hard disk can be installed.
Press the power switch on the rear panel after connecting the power cable.
Use a hard disk with 7200 RPM or higher.
