The DC T700 Digital Camera User Manual introduces the usage and precautions of the camera, including the storage conditions of the camera and the use of toxic substances.

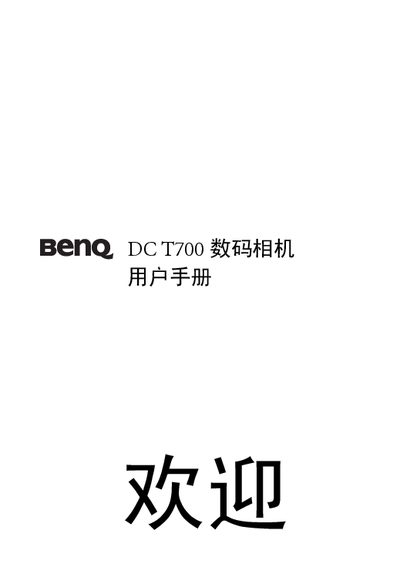

This manual introduces the BenQ DC T700 digital camera, covering safety precautions, component overview, and basic handling. It guides users through unpacking, battery installation, charging, and SD‑card management, as well as language and date/time settings.
Detailed sections explain shooting modes, exposure settings, flash options, and image/video specifications. The document also provides troubleshooting tips, service information, and full technical specifications of the camera. This manual is written in Chinese.
| Image sensor | 720万像素 CCD |
|---|---|
| LCD display | 3英寸 LTPS LCD, 230,000 dots |
| Lens aperture | F2.7 – F5.2 |
| Focal length (35 mm equivalent) | 6.2 mm (wide) – 18.6 mm (tele) |
| Focus type | TTL auto‑focus |
| Shutter speed range | 1/2000 s – 1 s (night mode up to 4 s) |
| Flash modes | Auto, Off, Forced, Red‑eye reduction, Soft |
| ISO range | Auto, 80‑800 |
| Image file formats | JPEG (Exif 2.2), DCF |
| Video format | MPEG‑4 / AVI, 640×480 @30/15 fps |
| Internal storage | 12 MB built‑in, expandable with up to 2 GB SD card |
| Interface | USB 2.0 digital output, NTSC/PAL audio‑video output, PictBridge |
| Power source | Lithium‑ion rechargeable battery |
| Operating temperature | 0 °C – 40 °C |
| Dimensions (W×H×D) | 91 mm × 59 mm × 16.9 mm (thinnest 14.9 mm) |
| Weight | 130 g (without battery and SD card) |
Insert the battery into the charger, connect the charger to the AC adapter, then plug the adapter into a wall outlet; the LED turns red while charging and green when fully charged.
Turn off the camera, open the battery/SD‑card compartment, insert the card with the correct orientation and close the cover; to remove, press the card edge to pop it out and close the cover.
The camera is designed to operate between 0 °C and 40 °C; using it outside this range may reduce performance.
