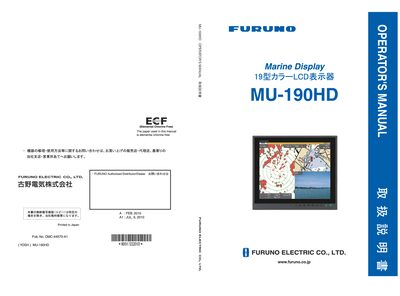

The Furuno MU-190HD Operator's Manual provides installation, configuration, operation, and maintenance instructions for the 19‑inch marine display.
This manual guides operators of the Furuno MU-190HD 19‑inch marine display. It includes important safety notices, disposal instructions, and warnings to prevent injury, fire, or equipment damage.
The document covers system configuration, equipment lists, mounting and wiring options, adjustments, operation procedures, maintenance, troubleshooting, and full specifications. Installation materials, outline drawings, and interconnection diagrams are provided at the back.
| Display size | 19‑inch color LCD |
|---|---|
| Resolution | SXGA (1280 × 1024) |
| Brightness | 1,000 cd/m² typical |
| Contrast | 900:1 |
| View angle | 160° typical |
| Power supply | 12‑24 VDC, 8.4‑3.9 A |
| Operating temperature | -15 °C to +55 °C |
| Relative humidity | 93 % at 40 °C |
| Protection rating | IP56 (front panel), IP22 (chassis) |
Turn off the power at the switchboard before beginning the installation and keep the unit away from water and direct sunlight.
The display operates from a 12‑24 VDC supply drawing 8.4‑3.9 A.
