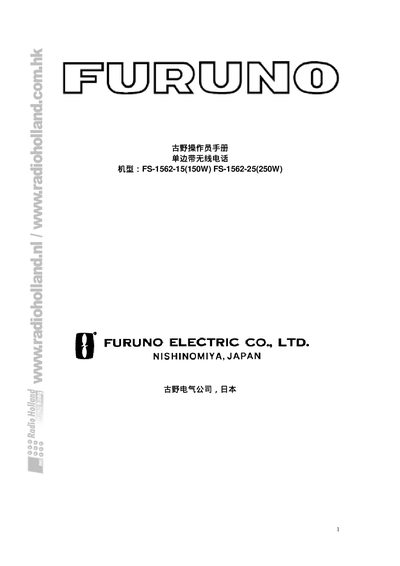

This document is the operator's manual for the Furuno FS-1562 MF/HF Single Sideband Wireless Telephone device. It provides safety guidelines, precautions, and information about the product's features and performance characteristics.
The Furuno FS-1562 series is a full‑function single‑sideband (SSB) marine radio telephone covering the 1.6‑27.5 MHz transmit band and 0.1‑30 MHz receive band. The manual provides safety guidelines, installation instructions, operating procedures, and maintenance information for the 150 W (FS‑1562‑15) and 250 W (FS‑1562‑25) models.
Key topics include power‑supply requirements, antenna coupling, frequency selection, emergency calling, and troubleshooting. Detailed specifications such as output power, voltage, dimensions, and antenna VSWR are listed for proper system setup and safe operation. This manual is written in Chinese.
| Transmit frequency range | 1.6 – 27.5 MHz |
|---|---|
| Maximum output power (FS‑1562‑15) | 150 W pep |
| DC power supply | 24 V ±30 % / –10 % |
| Transceiver dimensions | 108 mm × 258 mm × 300 mm (WxHxD) |
| Antenna VSWR | < 1.5 |
| Maximum preset channels | 200 |
| Antenna length requirement | 7 m – 30 m |
It requires a 24 V DC supply with a tolerance of +30 % and –10 %.
Up to 200 channels can be preset in the unit.
