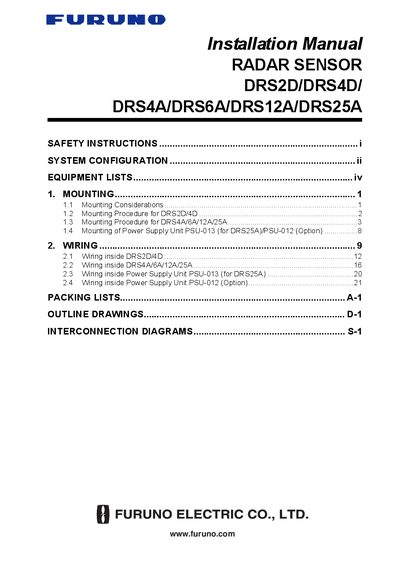

Furuno DRS2D/DRS4D/DRS4A/DRS6A/DRS12A/DRS25A Radar Sensor Installation Guide

About this manual

The manual provides safety instructions for installing Furuno radar sensors, including the requirement to wear a safety belt and hard hat and to ground the equipment to prevent electrical shock. It details system configuration, power supply options (100/110/220/230 VAC, 12‑24 VDC) and NMEA 2000 connectivity, as well as the equipment lists for each sensor model.

Mounting procedures describe platform construction, bolt torque (19.6‑24.5 N·m), and safe distances to magnetic compasses and RF radiation zones. Wiring sections cover cable routing for the sensor, power supply units (PSU‑012, PSU‑013) and optional accessories. The document ends with packing lists, outline drawings, interconnection diagrams and warranty terms.

What's inside

• Safety Instructions
• System Configuration
• Equipment Lists
• Mounting Procedure
• Wiring
• Power Supply Units
• Optional Supplies
• Outline Drawings
• Interconnection Diagrams
• Warranty

Specifications

Frequently asked questions

What personal protective equipment is required when installing the radar antenna?

You must wear a safety belt and hard hat while working on the antenna unit.

What torque range should be used for the mounting bolts?

The torque should be set between 19.6 and 24.5 N·m.

What are the safe distances for RF radiation levels of 100 W/m²?

For the DRS4A model the safe distance is 1.20 m; for DRS6A it is 0.85 m.

What power supply voltage does the radar sensor require?

The radar sensor operates from a 12‑24 VDC power supply.
