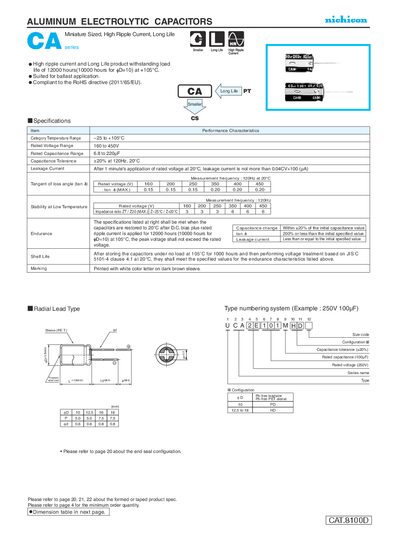

Datasheet for CAT.8100D aluminum electrolytic capacitors, detailing capacitance, voltage, dimensions, and performance specifications.
The CAT.8100D series provides miniature aluminum electrolytic capacitors with high ripple current capability and long life, suitable for ballast applications. The capacitors comply with the RoHS directive (2011/65/EU) and feature Pb‑free leadwire and PET sleeve construction.
Technical data include rated capacitance from 6.8 µF to 220 µF, voltage ratings from 160 V to 450 V, and operation over a temperature range of –25 °C to +105 °C. Performance characteristics such as leakage current, tan δ, and endurance are specified for a 120‑hour test at 105 °C.
| Temperature range | -25 to +105 °C |
|---|---|
| Rated voltage range | 160 to 450 V |
| Rated capacitance range | 6.8 to 220 µF |
| Capacitance tolerance | ±20 % |
| Leakage current (max) | 0.04 C·V + 100 µA |
| Endurance (life at 105 °C) | 12 000 h (10 000 h for φD=10) |
| RoHS compliance | Yes (2011/65/EU) |
