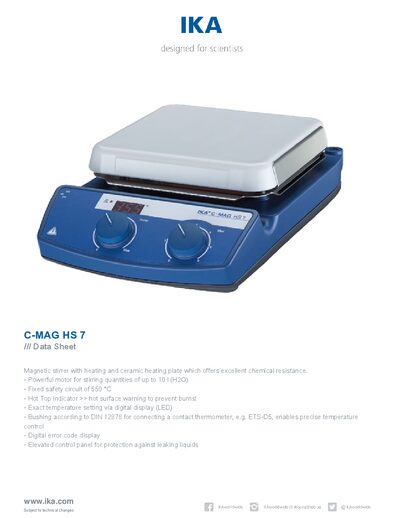

The IKA C-MAG HS 7 magnetic stirrer data sheet lists specifications for heating, stirring capacity, and safety features.
The C-MAG HS 7 is a magnetic stirrer with a ceramic heating plate that offers excellent chemical resistance and a powerful motor for stirring up to 10 L of water. It includes safety features such as a fixed 550 °C safety circuit and a hot‑top indicator to warn of hot surfaces.
Technical data cover motor output, speed range, heating power, temperature limits, dimensions, weight, and electrical requirements, providing a complete overview of the device's capabilities.
| Maximum stirring quantity (H2O) [l] | 10 |
|---|---|
| Motor rating output [W] | 1.5 |
| Speed range [rpm] | 100 - 1500 |
| Heat output [W] | 1000 |
| Heating temperature range [°C] | 50 - 500 |
| Fixed safety circuit [°C] | 550 |
| Set‑up plate material | ceramic |
| Dimensions (W × H × D) [mm] | 220 x 105 x 330 |
| Weight [kg] | 5 |
| Voltage [V] | 230 / 120 / 100 |
| Power input [W] | 1020 |
It can stir up to 10 L of water per stirring position.
The heating temperature range is 50 °C to 500 °C.
The hot‑top indicator provides a warning to prevent burns.
