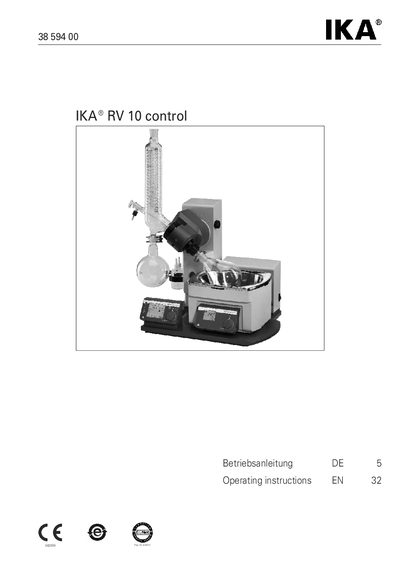

This document is an operating instruction for IKA®RV 10 control. The product complies with the regulations 2006/95/EC, 98/37/EC, and 2004/108/EC and conforms to the standards or standardized documents DIN EN IEC 61010-1, -2-051; DIN EN ISO 12100-1, -2; EN 60204-1, and DIN EN IEC 61326-1.
This operating manual for the IKA RV 10 control rotary evaporator contains essential safety instructions, unpacking steps, and detailed guidance on assembling the device with its accessories such as the spray guard (HB 10.1) and cover (HB 10.2). It explains the intended laboratory applications, including gentle distillation, solvent removal, and crystallisation.
The document also covers commissioning, adjustment of the drive speed, heating‑bath settings, vacuum configuration, routine maintenance, error codes and the technical specifications required for safe and efficient operation. This manual is written in German.
| Rotational speed range | 20–270 rpm |
|---|
The recommended 60‑40‑20 rule sets the heating‑bath temperature at about 60 °C, the vapor‑condensation temperature at 40 °C, and the cooling‑water temperature below 20 °C.
