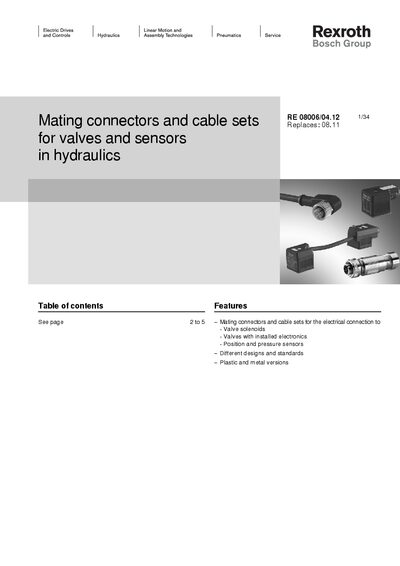

Technical catalog of Bosch Rexroth mating connectors and cable sets for hydraulic valves and sensors.
This document lists the mating connectors and cable sets offered by Bosch Rexroth for hydraulic valves, solenoids, and sensors. It includes part numbers, connector types (e.g., Z4, Z45, Z5L, Z60), and ordering codes for various configurations.
Technical data such as ambient temperature ranges, protection classes, indicator light colors, and mechanical dimensions are provided for each connector family, along with cable length options and wiring diagrams.
| Ambient temperature (standard) | –40 to +125 °C |
|---|---|
| Protection class | IP65 (mounted and locked) |
| Indicator light color | LED yellow |
| Number of poles | 2 + PE |
| Maximum line cross‑section | 21.5 mm² |
| Type of connection | Screw connection |
| Unit dimensions (example Z4, Z45) | dimensions in mm (see table) |
The standard connectors operate from –40 °C to +125 °C.
They meet protection class IP65 according to EN 60529.
All connectors use a screw connection.
The indicator light is a yellow LED.
