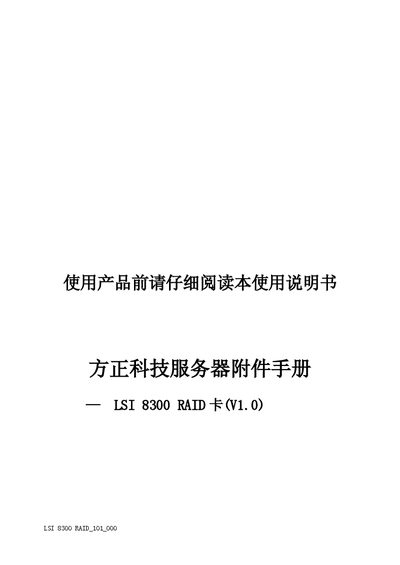

This manual provides detailed instructions on the installation and use of Founder Technology's LSI 8300 RAID card, including how to quickly create a RAID array, the use of the embedded management software WEBBIOS CU and the graphical management software POWER CONSOLE PLUS (PCP).
This manual provides detailed instructions for installing and configuring the Founder 8300 RAID card in server systems. It includes safety measures, PCI‑X slot selection, SAS cabling, and driver setup.
The document also describes the management software (WebBIOS and Power Console Plus), supported operating systems, and fault diagnosis procedures to help maintain reliable RAID operation. This manual is written in Chinese.
| RAID control chip | Intel 80321 |
|---|---|
| SAS controller | LSI 1020 |
| Cache | 128M SDRAM |
| Supported RAID levels | RAID0, RAID1, RAID5, RAID10 |
After a new RAID array is created the system performs an initialization process, during which the hard‑drive LED flashes; this is normal.
If the array uses RAID1, RAID5, RAID 0+1 or RAID5, data is not lost; follow the manual’s repair steps and back up data before repairing.
