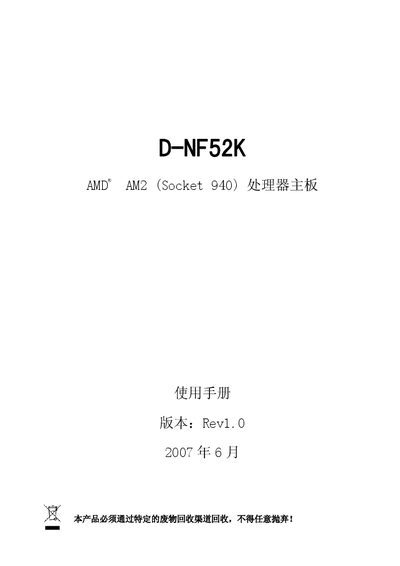

This manual covers safety instructions, hardware installation procedures, and BIOS settings for the D‑NF52K motherboard. It includes detailed connector and pinout diagrams, a list of supplied accessories, and troubleshooting tips.
The document also describes the motherboard layout, component functions, and provides reference tables for BIOS options, power management, and RAID/eSATA features. Users are advised to follow the recommended battery type and avoid exposure to moisture or liquids. This manual is written in Chinese.
| CPU socket | Socket 940 |
|---|---|
| ATX power connector | 4‑pin |
| ATX power connector (24‑pin) | 24‑pin |
| Memory slots | 4 × 240‑pin DDR2 DIMM |
| IDE ports | 2 × 40‑pin IDE |
| SATA ports | 4 × 7‑pin SATA |
Use the battery type recommended by the manufacturer.
No, the device should not be placed in a humid or unrestricted environment.
