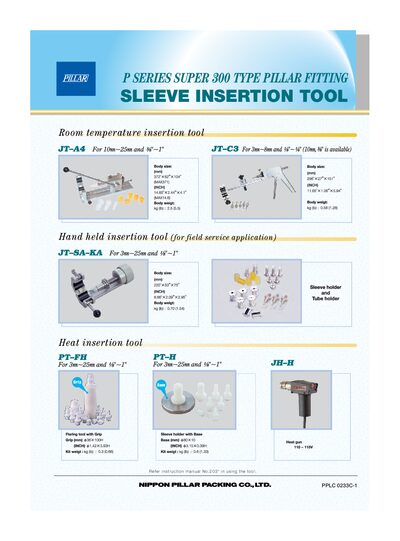

This document describes the P Series Super 300 Type Pillar Fitting Sleeve Insertion Tool PPLC 0233C-1. The tool is a hand held insertion tool suitable for field service applications.
The leaflet describes several versions of the P Series Super 300 sleeve insertion tool, including a room‑temperature model, a hand‑held field service model, and a heat insertion model with a grip sleeve holder. Each tool is sized for specific tube diameters and insertion lengths.
Technical data such as body dimensions, weight, and compatible tube sizes are listed, and contact information for Nippon Pillar offices worldwide is provided for ordering and support.
| Room temperature tool body size | 0.372 × 0.62 × 0.104 mm |
|---|---|
| Room temperature tool weight | 0.58 kg (1.28 lb) |
| Hand‑held tool body size | 220 × 53 × 75 mm |
| Grip sleeve holder size | 36 × 100 mm |
| Supported tube outer diameter | 3 mm – 25 mm (various sizes listed) |
The room temperature insertion tool weighs 0.58 kg (1.28 lb).
The tool supports tube outer diameters from 3 mm up to 25 mm, with specific part numbers for each size.
Refer to instruction manual No.203* for usage instructions.
The tool is manufactured by Nippon Pillar Packing Co., Ltd.
