CB900P is a packaging control display, which uses the most advanced SMT technology to produce, safe and reliable performance, can be connected to external instruments or computers for two-way communication. CB900P is mainly used for packaging control, and can simplify external logic control by PLC function. Up to 5 production programs can be edited to match different applications. 5 sets of target quantities for materials can be preset. The batch cycle number of continuous batch production can be changed. It has accumulated total amount and batch number. When the actual weight is less than the target weight, it can allow overage.

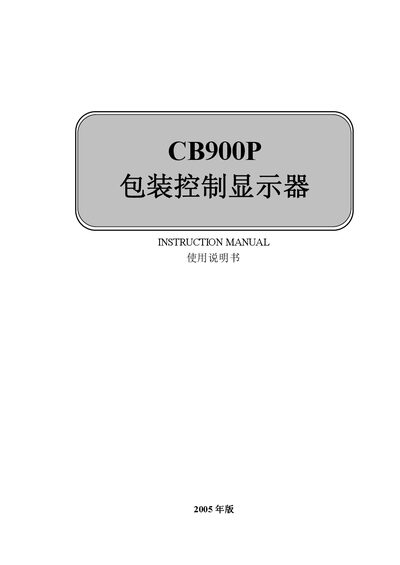

This manual describes the CB900P packaging control display, covering its overall features, technical specifications, and operation procedures. It includes sections on general specifications, digital and analog modules, RS232/RS485 communication, and mechanical drawings.
Detailed chapters explain how to set up the RS232/RS485 interfaces, configure measurement ranges, adjust weighting parameters, and perform maintenance tasks. The document also provides functional tables, wiring diagrams, and troubleshooting guidance. This manual is written in Chinese.
| Power Supply | AC 110V or 220V, 60Hz |
|---|---|
| Power Consumption | 18 |
| Operating Temperature | -10 to 350 |
| Relative Humidity | 90%–96% |
| Measurement Range | 300 to 100,000 |
| Decimal Point Positions | Configurable (up to 4 places) |
| Communication Interfaces | RS232 / RS485 |
It operates on AC 110 V or 220 V at 60 Hz.
The device can measure from 300 up to 100 000 units.
The CB900P provides RS232 and RS485 interfaces.
It can operate between –10 °C and 350 °C.
