This is a maintenance manual for an 8kg washing machine, which mainly introduces the basic information, technical parameters, component list, circuit diagram and other information of the washing machine

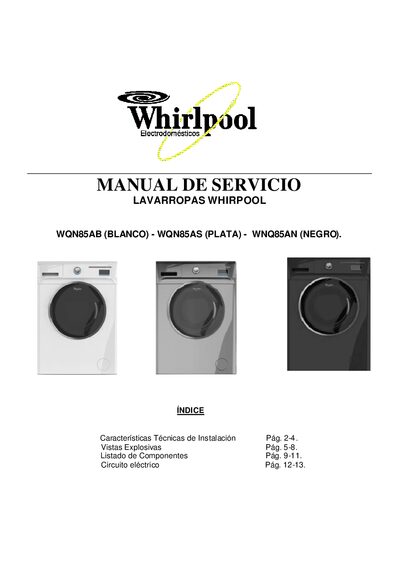

This service manual provides detailed information for the Whirlpool WQN85 series front‑load washing machines (models WQN85AB, WQN85AS, WNQ85AN). It includes technical installation specifications, exploded diagrams, a complete component list, and the electrical circuit diagram.
The document also contains key technical data such as dimensions, weight, electrical requirements, drum capacity, spin speed, heating element power, and drain pump specifications, along with safety notes for voltage limits and operation. This manual is written in Spanish.
| Dimensions (HxWxD) | 85 cm x 60 cm x 55 cm |
|---|---|
| Weight (with packaging) | ≈ 71.1 kg |
| Weight (without packaging) | ≈ 69.6 kg |
| Voltage | 220 V |
| Frequency | 50 Hz |
| Connected Power | 22 kW |
| Thermal Fuse Rating | 10 A |
| Drum Volume | 54 L |
| Wash Speed | 40‑55 rpm |
| Spin Speed | 1200 rpm |
| Heating Element Power | 1950 W |
| Heating Element Voltage | 230 V |
| Drain Pump Power | ~35 W |
| Drain Pump Flow | >18 (unit not specified) |
The machine measures 85 cm high, 60 cm wide and 55 cm deep.
It operates on 220 V at 50 Hz.
The spin speed is 1200 rpm.
