This manual introduces the maintenance and repair methods of KAWASAKI FB460V engine
This service manual is intended for trained mechanics and covers all aspects of the FB460V engine, including safety warnings, required tools, torque values, and proper assembly techniques. It begins with general information, performance curves, dimensional data, and periodic maintenance guidelines.

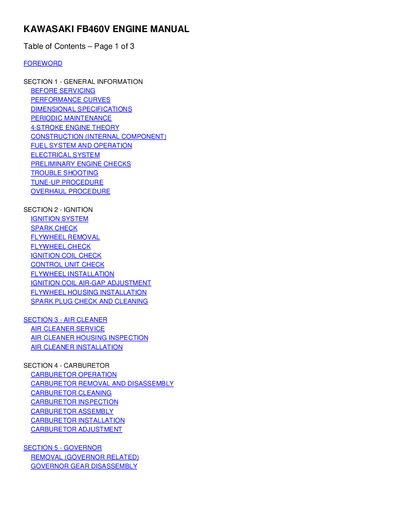

The manual is organized into sections for the ignition system, air cleaner, carburetor, governor, compression, lubrication, piston and connecting‑rod, crankshaft and camshaft, cylinder block and bearings, electric starter and charging system, and recoil starter, each providing step‑by‑step procedures, inspection criteria, and troubleshooting tips.
| Engine displacement | 460 cc (28.1 cu.in.) |
|---|---|
| Bore x Stroke | 89 mm x 74 mm (3.50 in. x 2.91 in.) |
| Maximum output | 12.5 kW @ 3,600 r.p.m. |
| Net weight | 36 kg (79.36 lbs) |
| Overall dimensions (L×W×H) | 307 mm × 381 mm × 419.5 mm |
The engine rotates counter‑clockwise when viewed from the front (flywheel end).
The engine can be equipped with an automatic electric starter or a recoil starter.
