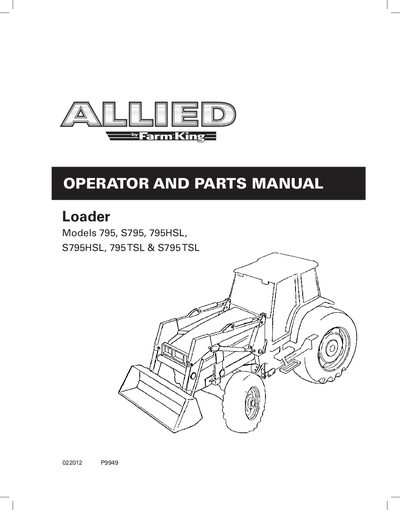

This manual is an operator's manual for 795 series loaders, introduces the functions and operating methods of the loaders, including safety operations, installation, operation, maintenance and maintenance.
This manual covers safety instructions, operating procedures, and detailed parts information for the 795 series front‑end loader. It includes sections on hydraulic hose kits, assembly drawings, maintenance, lubrication, and troubleshooting.
The document also lists technical specifications such as mounting height, lift capacity, and maximum dump angles, and provides a warranty statement and dealer contact information.
| Mounting height | 43.0" (nominal) |
|---|---|
| Maximum lift height (full height) | 163" (13.6') |
| Clearance with bucket dumped (full height) | 137" (11.4') |
| Reach at full height | 25" |
| Maximum dump angle (full height) | 32° |
| Digging depth | 4" |
| Overall height in carry position | 84" (7") |
| Estimated breakout force | 5705 lbs |
| Estimated lift capacity | 3100 lbs |
The manual uses alert, caution, warning, and danger symbols to indicate different hazard levels.
Hose Kit “A” consists of four hoses leading from the loader tubing to tractor remote couplers.
The maximum lift height (full height) of the 795 Loader is 163 inches (13.6 feet).
