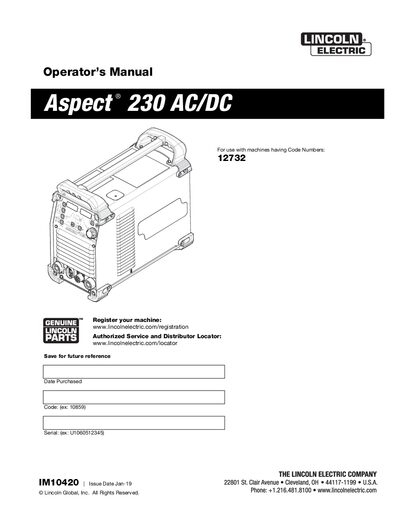

This document introduces the use of the Aspect 230 AC/DC arc welding machine, including safety precautions, equipment installation, operation methods, and maintenance.
This manual covers essential safety precautions for the Aspect®230 AC/DC, including required protective equipment, ventilation, and proper handling of hazardous fumes. It also details installation requirements such as grounding, suitable location, and electrical connections.
The guide explains operation of the welding machine, its control interface, memory settings, and provides detailed technical specifications, maintenance procedures, troubleshooting steps, and a parts list for service personnel.
| Input Voltage | ± 10% 120‑240V Single Phase |
|---|---|
| Duty Cycle | 100% 60% 35% |
| Rated Output Current (GTAW) | 110 A |
| Weight | 50.5 lbs (22.9 kg) |
| Enclosure Rating | IP23 |
Connect the grounding screw on the back of the unit to a good electrical earth ground.
The machine offers duty cycles of 100%, 60% and 35% depending on the output setting.
No, the Aspect®230 AC/DC cannot be stacked.
Read the manual, wear appropriate protective gear, ensure proper ventilation, and never operate without following the safety precautions.
