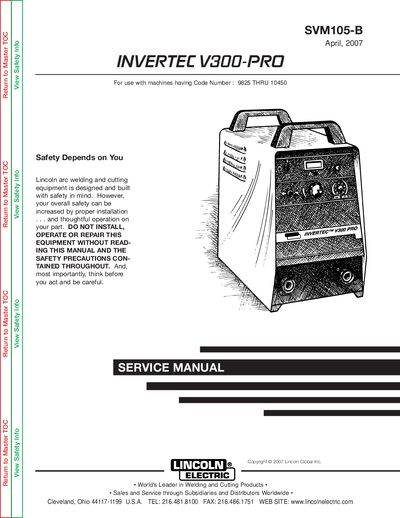

This is the service manual for INVERTEC V300-PRO SVM105-B, which introduces the use and maintenance methods of this product.
This Service Manual covers safety precautions, proper installation, and operation of the Lincoln V300-PRO SVM105-B arc welding power source. It emphasizes that only qualified personnel should install, service, or repair the equipment and that power must be disconnected before any work.
The manual is organized into sections such as Safety, Installation, Operation, Accessories, Maintenance, Theory of Operation, Troubleshooting and Repair, Electrical Diagrams, Parts Manual, and Technical Specifications, providing detailed guidance for each aspect of the equipment.
| Input Voltage (single phase) | 208/230/460/575 V |
|---|---|
| Rated Output Current (100% Duty Cycle) | 250 A |
| Rated Output Current (60% Duty Cycle) | 300 A |
| Output Voltage (CV mode) | 60‑70 VDC |
| Output Current (CC mode) | 5‑300 A |
The unit can be connected to single‑phase input voltages of 208 V, 230 V, 460 V, or 575 V.
