TPD4131K is a high-voltage PWM DC brushless motor driver. It is an integrated circuit with a high-side drive circuit, a low-side drive circuit, a PWM circuit, a three-phase distribution circuit, a level shift high-side driver, overcurrent protection, over-temperature protection, undervoltage protection, and FRD. It is driven by Hall sensor/Hall IC and microcontroller to directly drive DC brushless motor to achieve variable speed.
The TPD4131K is a high‑voltage PWM brushless motor driver IC using a SOIT process. It integrates PWM circuitry, three‑phase distribution, level‑shift high‑side and low‑side drivers, over‑current, over‑temperature and undervoltage protection, and an IGBT full‑bridge output, allowing direct speed control of DC brushless motors via Hall‑sensor inputs or microcontroller control.

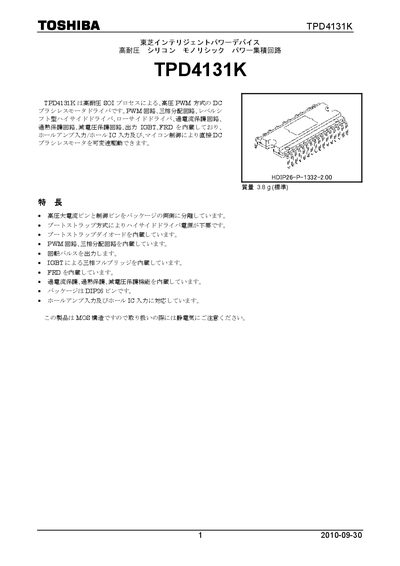

The document includes a block diagram, pin‑out table, internal circuit diagrams, timing charts, absolute maximum ratings, detailed electrical characteristics, package dimensions, and handling guidelines. It is intended for designers who need precise electrical data and protection features for implementing the TPD4131K in power‑electronics applications. This manual is written in Japanese.
| Vcc rating | 20 V |
|---|---|
| Maximum DC output current | 1 A |
| Maximum pulse output current | 2 A |
| Input voltage (Vs only) | 8.2 V |
| Operating temperature range | -40 °C to 135 °C |
| Storage temperature range | -55 °C to 150 °C |
It is supplied in an HDIP26‑P‑1332‑2.00 DIP26 package.
The device includes over‑current, over‑temperature, and undervoltage protection.
