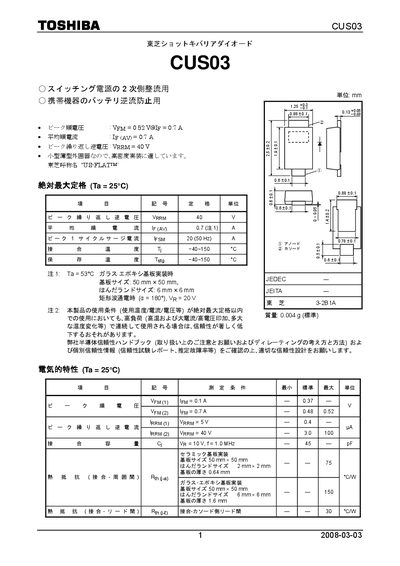

The CUS03 is a low‑profile Schottky barrier diode designed for high‑density mounting in portable equipment. It offers a typical forward voltage of 0.52 V at 0.7 A and a peak repetitive reverse voltage of 40 V, making it suitable for compact power‑management circuits.
The document lists absolute maximum ratings, recommended operating temperatures, package dimensions, and solder‑pad reference patterns, along with safety and handling precautions to prevent thermal runaway and ensure reliable performance. This manual is written in Japanese.
| Peak forward voltage (VFM) at IF=0.7 A | 0.52 V |
|---|---|
| Average forward current (IFAV) | 0.7 A |
| Maximum junction temperature (Tj max) | 150 °C |
| Storage temperature range (Ta) | -40 °C to 150 °C |
At a forward current of 0.7 A, the typical forward voltage is 0.52 V.
