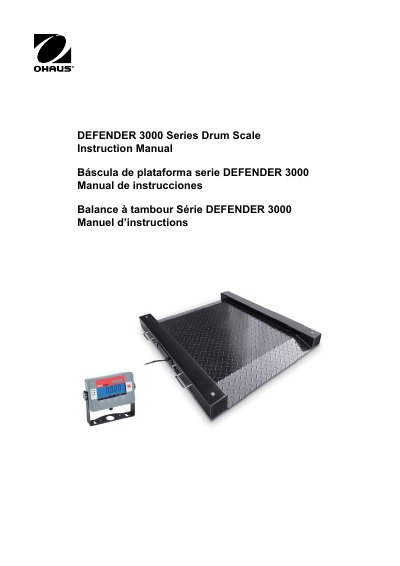

Ohaus DEFENDER 3000 Series Drum Scale Instruction Manual

This instruction manual mainly introduces the installation, operation and maintenance of DEFENDER 3000 series drum scales

Brand: OHAUS
Document type: User Manual
Language: English
Pages: 28
File format: PDF
File size: 693 KB
Published: 16 October, 2023
Updated: 16 October, 2023
Model: DEFENDER 3000 Series
MD5 checksum: FA7A34EE8B5D0C0653D254AF21CB7B2D
PDF: Ohaus DEFENDER 3000 Series Drum Scale Instruction Manual PDF

About this manual

The document serves as a comprehensive guide for the Ohaus DEFENDER 3000 Series Drum Scale. It covers safety precautions, unpacking, positioning on a flat surface, and connecting an external indicator. The manual details operating limits based on load distribution (central vs. side loads) and outlines daily maintenance checks such as verifying foot contact and cleaning procedures.

What's inside

Introduction
Safety Precautions
Installation
Positioning
Connecting an Indicator
Operation
Operating Limits
Maintenance
Technical Data
Specifications

Specifications

Platform Dimensions (Small)	30 x 30 in. / 762 x 762 mm
Platform Dimensions (Large)	36 x 36 in. / 914 x 914 mm
Load Cell Type	4 x IP67 nickel plated alloy steel load cells, shear beam
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Power Supply	9-12 VDC, 500mA

Frequently asked questions

What is the maximum central load for the DFD32M500ES model?

The maximum permissible central static load for this model is 825 lb / 375 kg.

What are the platform dimensions of the scale?

The scale features a platform measuring 30 x 30 in. / 762 x 762 mm.

What is the operating temperature range for the equipment?

The instrument operates within a temperature range of -10°C to 40°C.

Download PDF (693 KB)
