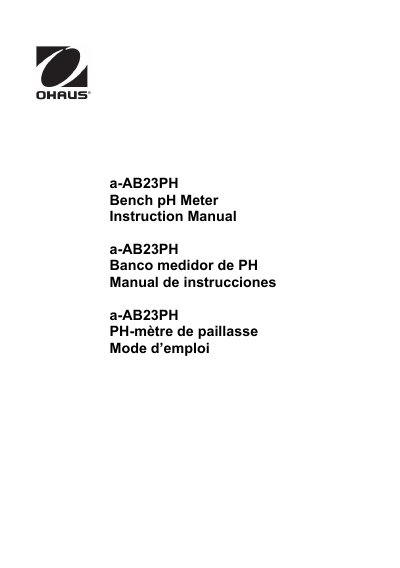

a-AB23PH Bench pH Meter is a benchtop pH meter with high accuracy and low drift, which can provide accurate pH measurement results. This manual contains installation, operation and maintenance instructions.
The OHAUS a-AB23PH Bench pH Meter is designed for use in laboratories, pharmacies, schools, and light industry. It measures pH, mV, and temperature, supporting both automatic and continuous endpoint modes. The device features a 5-inch segment LCD with backlight and includes memory storage for up to 99 sets of measurement data.
| Operating temperature | 5 to 40°C |
|---|---|
| Humidity | Maximum relative humidity 80% for temperatures up to 31 °C |
| Electrical supply | 12VDC, 0.1A |
| Display Type | 5" segment LCD with backlight |
| Measurement Channels | 1 |
| Datalog for Measurement | 99 sets |
| Net Weight | 2.5 kg |
The default MTC temperature value is 25°C (77°F).
The meter can store up to 99 sets of measurement data.
The meter has three sockets: pH/mV (BNC), Temp. (Cinch), and Ref. (2mm banana).
