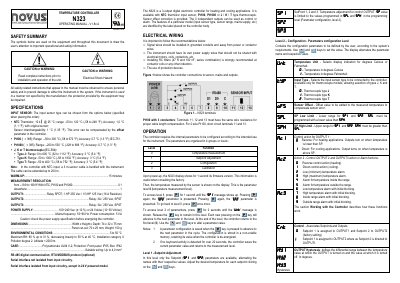

N323 Temperature Controller Operating Manual, mainly introducing the product's safety warnings, specifications, usage instructions, etc.
The Novus N323 is a 3-output digital electronic controller designed for heating and cooling applications. It supports input sensors including NTC thermistors, Pt100/Pt1000 resistance probes, and J/K/T type thermocouples. The device features three independent outputs that can function as control or alarm signals.
| Input Sensor Options | NTC Thermistor, Pt100, Pt1000, J/K/T thermocouple |
|---|---|
| Warm-up Time | 15 minutes |
| Power Supply (Mains) | 100-240 Vac or 24 Vdc/ac |
| Dimensions | 74 x 32 x 75 mm |
| Communication Interface | RS-485 digital communication; RTU MODBUS protocol (optional) |
The device features three independent outputs that can be used as control or alarm functions.
Press and hold the UP key for 2 seconds until the 'int' message appears to enter Level 2.
