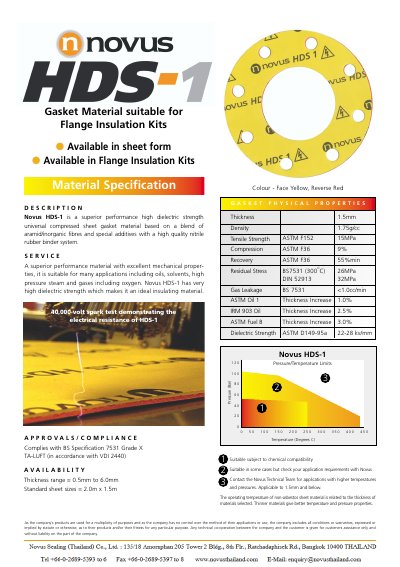

A superior performance high dielectric strength universal compressed sheet gasket material based on aramid/inorganic fibres and a nitrile rubber binder system.
The Novus HDS-1 is a high-performance gasket material designed for applications involving oils, solvents, high-pressure steam, gases including oxygen, and as an insulating material. It features a blend of aramid and inorganic fibers with special additives bound by a high-quality nitrile rubber system.
The material offers excellent mechanical properties and has demonstrated very high dielectric strength, passing a 40,000 volt spark test. It is available in thicknesses ranging from 0.5mm to 6.0mm and standard sheet sizes of 2.0m x 1.5m.
| Thickness Range | 0.5mm to 6.0mm |
|---|---|
| Standard Sheet Size | 2.0m x 1.5m |
| Dielectric Strength (ASTM D149) | 22-28 kv/mm |
| Density (1.5mm) | 1.75g/cc |
It is suitable for many applications including oils, solvents, high pressure steam and gases including oxygen.
Yes, it has very high dielectric strength which makes it an ideal insulating material.
The pressure limit at 0 degrees Celsius is 50 Bar.
