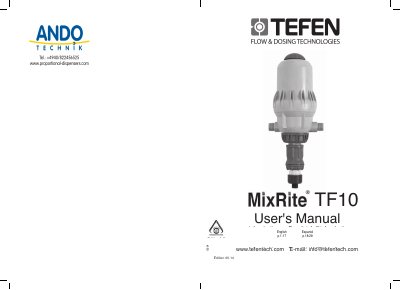

This manual describes the MixRite TF10 Fertilizer and Chemicals Injector. The manual includes instructions on how to use the product, maintenance instructions, and troubleshooting information.
The Tefen MixRite TF10 is a proportioning dosing injector designed to be fitted on a water line to pump liquid fertilizer or other additives into the water flow. The device operates within a water flow rate of 0.5 to 10 m3/Hr (2 - 45 GPM) and a water pressure range of 1 to 8 bar (14.7 to 120 PSI). It is suitable for water and air temperatures between 4°C and 40°C (39°F - 104°F).
| Water flow rate | 0.5 to 10 m3/Hr (2 - 45 GPM) |
|---|---|
| Water pressure | 1 to 8 bar (14.7 and 120 PSI) |
| Temperature range | 4°C to 40°C (39°F - 104°F) |
| Head loss (Low flow) | 0.1 Bar |
| Head loss (High flow) | 0.9 Bar |
| Max deviation injection rate | +/- 10% |
A filter of at least 120 mesh (130 micron) must be installed prior to the injector to prevent premature deterioration.
The injector must be placed so that the arrow stamped on the body and the red arrow on the central sticker point in the direction of the water flow.
The maximum deviation in the injection rate is +/- 10%.
