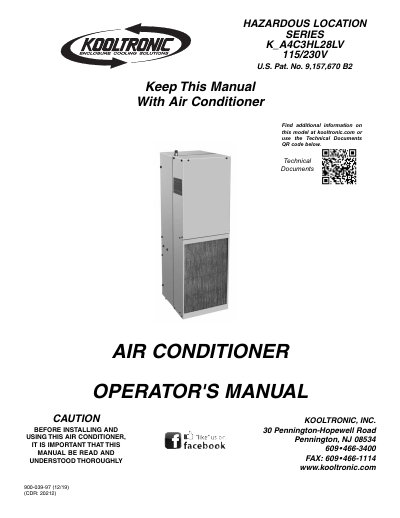

This is the user manual of Kooltronic Hazardous Location Air Conditioners (HL Series)
The Kooltronic Hazardous Location Air Conditioners (HL Series) are designed to provide a cool, dehumidified environment for electronic components in hazardous locations. The manual provides general information for properly installing and operating standard Kooltronic Air Conditioners, including specific instructions for pressurized enclosures and purge systems.
Key operational requirements include ensuring the unit is mounted vertically and connected to a pressurized customer enclosure with a Purge/Pressurized Control System. The document details incoming inspection procedures, product handling precautions to prevent compressor damage, and specific model data found on the nameplate.
| Internal Pressurized Volume | 2.4 CU. FT. |
|---|---|
| Application Class | Class I, Division 1, Groups A, B, C and D |
The air conditioner is designed to operate in a vertical position only.
Do not tip the unit more than 45° from its proper mounting position.
No, it must be placed in its correct mounting position a minimum of 5 minutes prior to operating.
