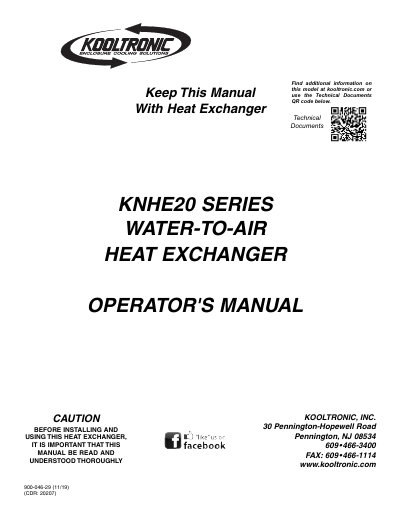

This document is an operator's manual for the Heat Exchanger KNHE20 SERIES WATER-TO-AIR HEAT EXCHANGER. It provides information on the installation and use of the product, as well as technical data and maintenance procedures.
The Kooltronic KNHE20 Series Water-to-Air Heat Exchanger is designed to provide a cool environment for electronic or electrical components using a closed-loop design. It transfers heat from internal air to circulating water, resulting in chilled air recirculated throughout the enclosure.
This Operator's Manual provides instructions for incoming inspection, product handling, identification, principles of operation, specific model data, mounting drawings, technical specifications, major component replacements, maintenance procedures, and packing guidelines.
A thorough inspection should be done upon receipt to check for carton tears, dents, scratches, or loose articles.
Electric power must be disconnected from the Heat Exchanger before any servicing is performed.
Do not handle or carry the blower by inserting fingers into the opening where wheels are located.
