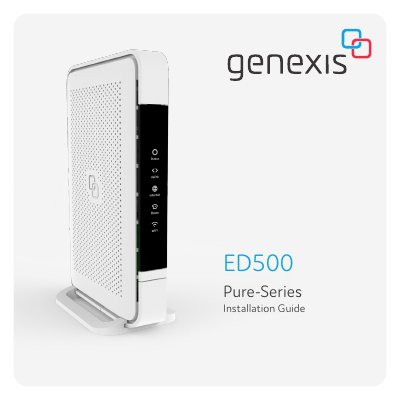

This manual describes the installation process of ED500 Pure Series
The Genexis ED500 Pure-Series is a broadband modem that supports DSL and Ethernet WAN interfaces. It features wireless connectivity (2.4 GHz and 5 GHz) and includes various status LEDs to indicate power, link, internet connectivity, voice service, and WiFi activity.
Installation involves connecting the appropriate cables to the DSL or WAN ports, linking personal devices via LAN ports, and powering on the unit. Users can mount the device on a wall using a provided drilling guide or place it on a flat surface. Wireless networks can be set up using WPS or manual configuration.
| Operating Temperature | 0°C ~ 40°C |
|---|---|
| Wireless Frequency Bands | 2.4 GHz and 5 GHz |
| Max Power (2400 MHz – 2483.5 MHz) | 20 dBm (100 mW) EIRP |
| Max Power (5150 MHz – 5350 MHz) | 23 dBm (200 mW) EIRP |
| Max Power (5470 MHz – 5725 MHz) | 30 dBm (1000 mW) EIRP |
Press and hold the Reset button with a small pin or paperclip for more than 10 seconds.
Press and hold the Mode button for 10 seconds to disable/enable WiFi.
A blinking yellow Status LED indicates that the device is currently booting up.
