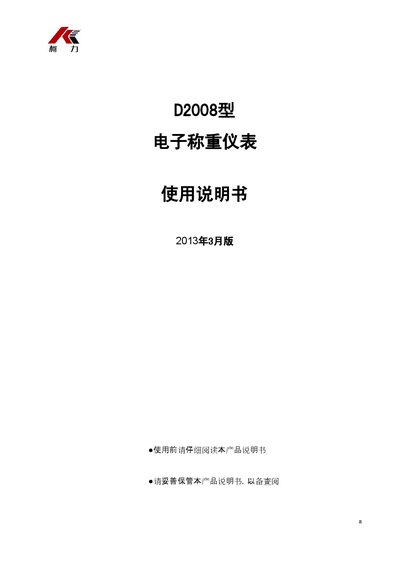

D2008 type electronic weighing instrument user manual, introduces the product's technical parameters, installation connection, weight record storage and printing, weight record query, weight record deletion, memory weight deletion, query printing and other contents.
The Keli D2008 electronic weighing instrument manual provides detailed instructions for safe installation, connection to sensors, computers, and large‑screen displays, as well as guidance on storing, printing, and managing weight records. It also includes appendices with printing examples, statistical report formats, and information prompts.
Technical specifications, communication interfaces, printer compatibility, and error codes are listed, helping users configure the device for reliable operation in industrial weighing applications. This manual is written in Chinese.
| Display | 7‑digit LED tube with 7 status indicators |
|---|---|
| Keyboard | 30 function keys (10 combined with numeric keys) |
| Clock | Shows year, month, day, hour, minute, second; auto‑leap year/month |
| Large‑screen interface | Current loop and RS232, 600 bps |
| Printer interface | Standard parallel port; compatible with EPSON LQ‑300K, LQ‑680K, LQ‑730K, LQ‑1600K, KX‑P1131, KX‑P1121, DS‑300, POS58, 中崎AB‑300K |
| Power input | AC 110‑220 V 50‑60 Hz, DC 12 V |
| Operating temperature | 0 °C – 40 °C |
| Storage temperature | -25 °C – 55 °C |
| Relative humidity | ≤85 %RH |
The instrument can store up to 2400 weight records; when full, the oldest records are automatically deleted.
The device operates from AC 110‑220 V (50‑60 Hz) or a DC 12 V supply.
