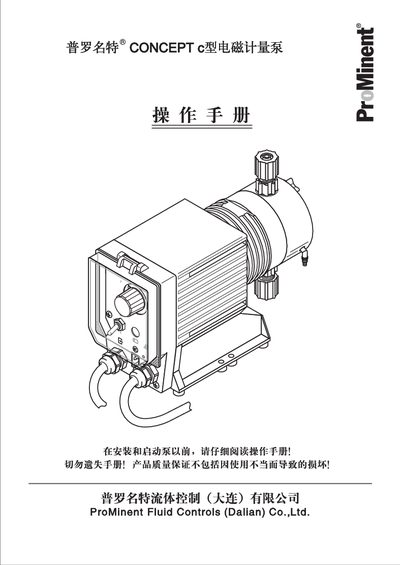

This manual provides safety instructions, installation steps, technical specifications, and troubleshooting for the CONCEPT C‑type electromagnetic metering pump. It is intended for trained personnel who will operate, maintain, or service the pump.
The document covers proper power connection, pump orientation, hose selection, cleaning procedures, and required protective equipment. Compliance information and a product certification page are included at the end. This manual is written in Chinese.
| Rated flow range | 0.72 – 24.0 L/h |
|---|---|
| Maximum output pressure | 1.5 – 16 bar |
| Protection class | IP65 |
| Contact load | 5 V, 0.5 mA |
| Analog control signal | 4–20 mA |
No. Running the pump empty can cause internal friction heating and damage, so the pump must never be operated without liquid.
Rotate the pump head to 180°, drain any residual water, then flush the pump with the intended fluid before starting operation.
