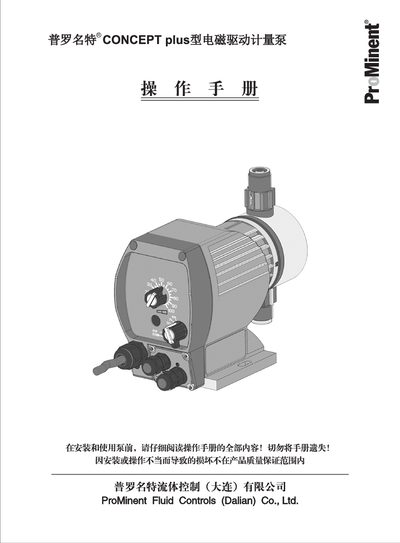

About this manual
This manual provides comprehensive guidance for the ProMinent CONCEPT plus series metering pump. It includes safety warnings, installation steps, cable and electrical connections, and details on seal materials and control options.
The document also outlines proper operating procedures, fault indicators, and maintenance requirements, ensuring safe and reliable pump performance in industrial applications. This manual is written in Chinese.
What's inside
- Safety Information
- Safety Precautions
- Assembly and Installation
- Electrical Connection
- Cable Options
- Seal Material Options
- Stroke Length Adjustment
- Fault/Run Indicator
- Multi‑function Switch
- Product Certificate
Specifications
| Power Supply | AC100‑230V 50/60Hz single‑phase |
|---|
| Stroke Frequency | 180 or 240 strokes per minute |
|---|
Frequently asked questions
How should the pump be connected to the power supply?
Connect the pump to an AC100‑230 V, 50/60 Hz single‑phase source using the supplied 2 m power cord with a European plug.
