XL7015 is an efficient, high-voltage buck DC-DC converter with features such as a maximum input voltage of 100V, adjustable output voltage, maximum duty cycle of 90%, and minimum dropout voltage of 2V.

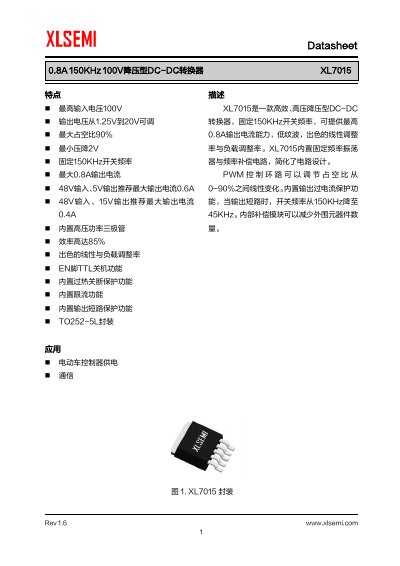

The XLSEMI XL7015 is a high-efficiency, high-voltage Buck DC-DC converter designed for applications such as electric vehicle controller power supply. It features a fixed 150KHz switching frequency, a maximum input voltage of 100V, and a maximum output current of 0.8A. The device includes an integrated high-voltage power transistor and offers adjustable output voltage from 1.25V to 20V. This manual is written in Chinese.
| Maximum Input Voltage | 100V |
|---|---|
| Output Voltage Range | 1.25V to 20V |
| Maximum Output Current | 0.8A |
| Switching Frequency | 150KHz |
| Maximum Duty Cycle | 90% |
| Package Type | TO252-5L |
| Maximum Junction Temperature | 150°C |
| Thermal Resistance (RJA) | 50°C/W |
The recommended maximum output current is 0.4A.
Yes, it includes thermal shutdown, current limiting, and output short-circuit protection.
The reference voltage is 1.25V.
