The BY‑BM6060 is a super‑cardioid condenser microphone designed for independent films, TV programs, and documentaries. It offers clear sound, low‑noise circuitry, an alloy‑aluminum body, and a switchable high‑pass filter at 150 Hz.

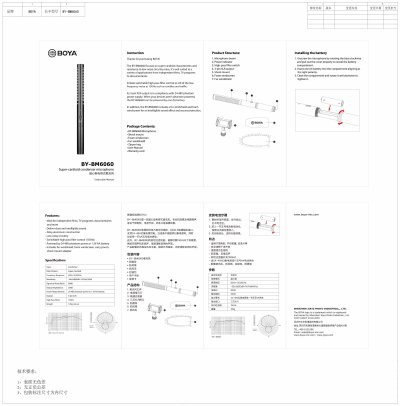

The manual includes feature highlights, full technical specifications, a parts diagram, battery‑installation steps, and a list of included accessories such as a shock mount, foam windscreen, fur windshield, and carrying pouch.
| Type | Condenser |
|---|---|
| Polar Pattern | Super‑Cardioid |
| Power Requirements | 24‑48V phantom power or 1.5V AA battery |
| Frequency Response | 60 Hz‑20 kHz |
| Sensitivity | -36+3 dB (0 dB=1 V/Pa@1 kHz) |
| Output Impedance | 2000 Ω |
| Output | 3‑pin XLR |
| High‑Pass Filter | 150 Hz |
| Weight | 129 g (4.6 oz) |
It can be powered by 24‑48 V phantom power or by a 1.5 V AA battery.
The package includes the microphone, a shock mount, foam windscreen, fur windshield, a zipper bag, the user manual, and a warranty card.
