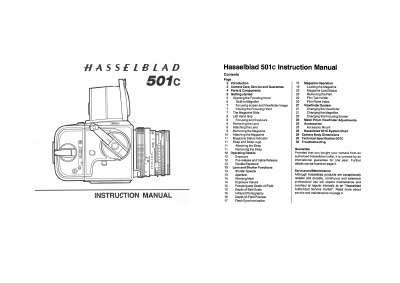

This manual introduces the Hasselblad 501C medium‑format single‑lens reflex camera, its interchangeable lenses, viewfinders, and film magazines. It covers the camera’s design, accessories, and the heritage of the Hasselblad system.
Detailed sections explain how to prepare the camera, attach lenses and magazines, adjust exposure, use the focusing hood and magnifier, and perform routine maintenance. Troubleshooting tips and technical specifications are also included.
| Camera type | Single lens reflex camera with 6 × 6 cm max image size |
|---|---|
| Body material | Aluminum alloy cast in one piece |
| Tripod socket | 1/4" and 3/8" threads |
| Focusing screen | Acute‑Matte focusing screen |
| Lens | Hasselblad Zeiss Planar C 2.8/80 mm |
| Magazine | Hasselblad A12, 12 exposures on 120‑type film |
Place the strap clip over the strap lug, press the tip of the clip toward the camera while pulling the strap, then slide the clip over the lug to the locked position.
White indicates the magazine is ready to operate; red indicates the film has not been advanced after the latest exposure.
After making the first exposure, insert the magazine slide, remove the magazine, wind the camera one full turn, replace the magazine, and remove the slide before making the second exposure.
