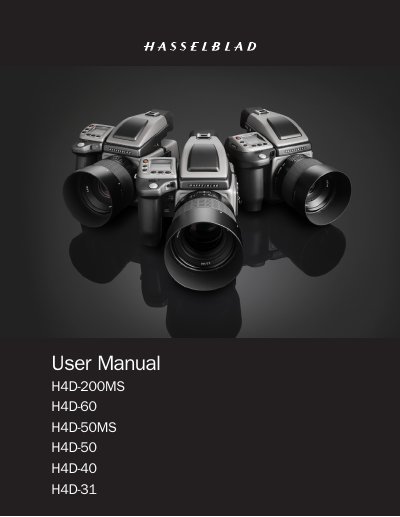

This document is the user manual for Hasselblad H4D series cameras, describing the operation and features of different models. The document includes topics such as lens removal, metering and exposure control, focus settings, etc.
This manual covers the Hasselblad H4D series of medium‑format digital cameras, describing the controls, displays, and accessories for each model. It explains how to operate the camera, set up menus, manage power, and connect to a computer for tethered shooting.
Key sections include lens attachment and removal, shutter and aperture control, depth‑of‑field calculation, ISO and white‑balance settings, exposure modes, profiling, storage options (CF cards or direct computer connection), and detailed technical specifications for each model.
| Sensor size | 60.1 Mpixels (6708 × 8956) |
|---|---|
| Sensor dimensions | 40.2 mm × 53.7 mm |
| Pixel size | 6.0 µm |
| ISO speed range | ISO 50‑800 (some models ISO 100‑1600) |
| Shutter speed range | 32 sec – 1/800 s |
| CF storage capacity | 8 GB (≈100‑200 images depending on model) |
| Capture rate | 1.4 sec per capture (≈31 captures/min) |
| Host connection type | FireWire 800 (IEEE1394b) |
| Display | 3‑inch TFT, 24‑bit color, 460 × 320 pixels |
The camera uses a FireWire 800 (IEEE1394b) connection to link with a computer.
