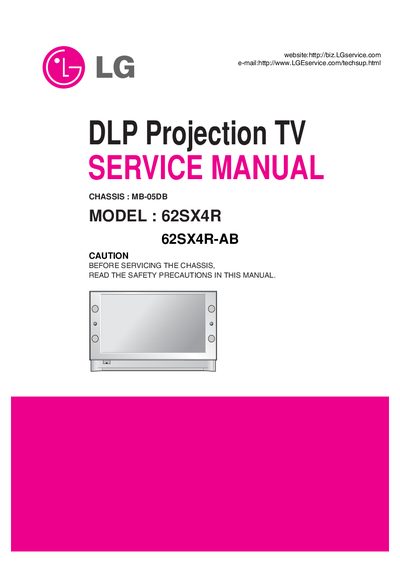

This service manual provides detailed safety and servicing precautions for the LG 62SX4R DLP projection TV. It includes instructions for handling high‑voltage components, static‑sensitive devices, and proper use of isolation transformers.
The document also contains control descriptions, lamp‑replacement procedures, technical specifications, adjustment instructions, block diagrams, exploded views, parts lists, and printed‑circuit‑board details to assist service technicians in diagnosing and repairing the unit.
| Operating Temperature | 25 °C |
|---|---|
| Relative Humidity | 65 % (±10 %) |
| Power Voltage | AC 240 V, 50 Hz |
| Model | 62SX4R‑AB |
Always unplug the receiver’s AC power cord before removing or reinstalling any component, and follow the detailed safety precautions listed in the manual.
Turn off the TV, wait for the lamp to cool for 30 minutes, then remove the lamp unit, replace it with an identical LG lamp, and securely tighten the screws.
The TV requires a standard AC input of 240 V at 50 Hz.
Open the battery compartment on the back of the remote, insert two AAA batteries respecting the polarity symbols, and close the compartment.
