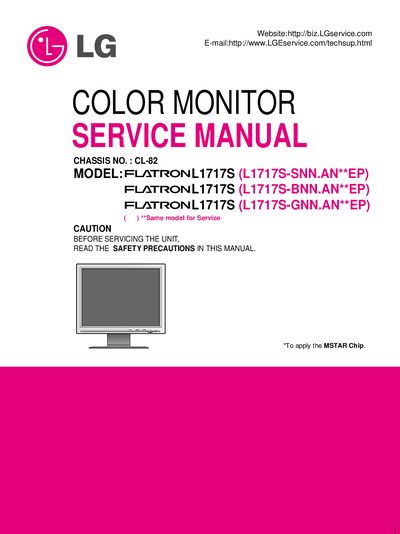

Service manual for the LG L1717S 17‑inch LCD monitor with specifications, safety precautions, disassembly steps and wiring diagrams.
This service manual provides detailed technical information for the LG L1717S LCD monitor, including LCD characteristics, electrical interfaces, power requirements, environmental limits, and mechanical dimensions. It also contains safety warnings, handling instructions, and recommended tools for servicing the unit.
The document is organized into sections such as specifications, timing charts, disassembly procedures, block diagrams, adjustment guidelines, troubleshooting, wiring diagrams, exploded views, parts lists, and schematics, enabling technicians to diagnose and repair the monitor safely and efficiently.
| Active Display Area | 17 inch |
|---|---|
| Pixel Pitch | 0.264 mm (H) x 0.264 mm (V) |
| Color Depth | 16.2M colors |
| Maximum Resolution | 1280 x 1024 @ 75 Hz |
| Power Supply | AC 100‑240 V, 50/60 Hz, 0.6 A |
| Power Consumption | < 35 W |
| Operating Temperature | 10 °C – 35 °C |
| Net Weight | 4.4 kg |
It requires an AC input of 100‑240 V at 50/60 Hz and draws up to 0.6 A.
The monitor supports up to 1280 × 1024 pixels at 75 Hz.
Disconnect the AC adapter before replacing the CCFL backlight because the inverter can generate about 650 Vrms, and use a plastic screwdriver while wearing a grounded wrist strap.
