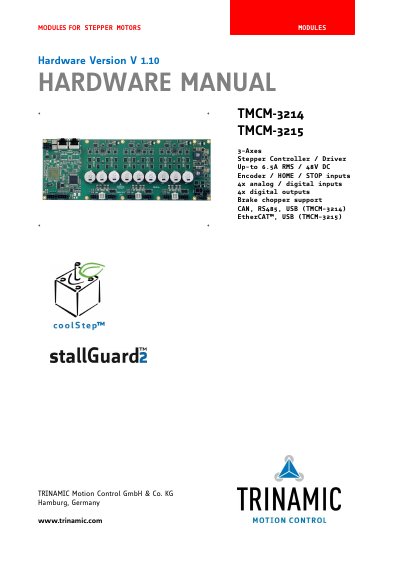

The TMCM‑3214 and TMCM‑3215 are three‑axis stepper motor controller/driver modules offering CAN, RS485 and USB (Micro‑USB) interfaces (TMCM‑3215 also provides EtherCAT™). They include four analog/digital inputs, four digital outputs, a brake chopper unit, and support up to 6.5 A RMS motor current per axis. The modules feature real‑time motion profile calculation, microstepping up to 256 steps, and integrated protection features such as stallGuard2™ and coolStep™.
Mechanically, the boards measure approximately 280 mm × 100 mm with a maximum height of 21 mm (17 mm above the PCB without connectors) and provide 12 M3 mounting holes. The connector layout includes RS485, CAN, USB, power, motor, encoder, and REF/HOME interfaces, using Molex MicroFit™ and RJ45 connectors. Operational ratings specify a supply voltage range of +24 V to +48 V (up to +53 V) and environmental temperature limits from –30 °C to +50 °C.
| Supply voltage range | +24 V to +48 V (up to +53 V) |
|---|---|
| Maximum motor current | 6.5 A RMS (programmable) |
| Board dimensions | 280 mm × 100 mm × 21 mm |
| Analog/Digital inputs | 4 analog inputs (0‑10 V) usable as digital inputs |
| Digital outputs | 4 open‑drain outputs, 500 mA each |
Each axis can be driven with up to 6.5 A RMS motor current.
The modules measure approximately 280 mm × 100 mm with a maximum height of 21 mm.
The module provides four analog inputs with a 0 V to 10 V range, which can also be used as digital inputs.
