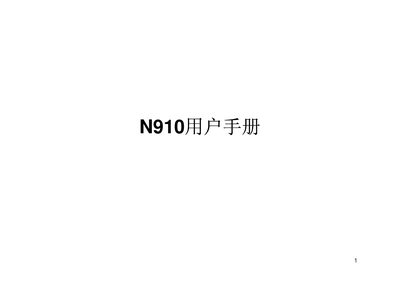

This document is the user manual of NEC N910, which mainly introduces the basic functions and usage methods of the mobile phone, including turning on/off, making calls, receiving calls, etc.
This manual explains how to set up and use the NEC N910 mobile phone, covering basic functions, SIM card handling, messaging features, and accessory usage. It also includes safety warnings and handling precautions for the device.
Key sections include safety instructions, operation procedures, technical specifications, troubleshooting FAQs, and a list of tools and accessories that accompany the phone. This manual is written in Chinese.
| GSM 900 TX frequency | 890.2 to 914.8 MHz |
|---|---|
| GSM 900 RX frequency | 935.2 to 959.8 MHz |
| DCS 1800 TX frequency | 1710.2 to 1784.8 MHz |
| DCS 1800 RX frequency | 1805.2 to 1879.8 MHz |
| GSM 900 nominal power | 33 dBm (2 Watt) |
| DCS 1800 nominal power | 30 dBm (1 Watt) |
| Dimensions | 52.3 x 57 x 22.5 mm |
| Operating temperature | -10 °C to 55 °C |
If the phone has signal but still cannot call, it may be due to signal blockage, building interference, or an enabled call‑restriction feature; disabling the restriction or checking the SIM card can resolve the issue.
SIM card operation can be affected by the phone’s status, charging condition, feature usage, temperature, and other environmental factors.
Low or missing audio may occur if the phone’s internal components are not properly seated or if the device has been exposed to conditions that affect its speaker performance.
