CN-MW250D and CN-MW150D are two car multimedia navigation devices with a high-definition 7-inch display, support DVD/CD playback, an internal SD card, and can be connected to iPod and USB devices. It supports 4 antennas and 4 tuners for digital terrestrial television, supports a variety of search methods, is equipped with a 3D gyroscope and a learning-type steering wheel switch setting, has an environmentally friendly eEco driving function, can customize the simple top two menu, and supports personal home phone number search and clearer map display.

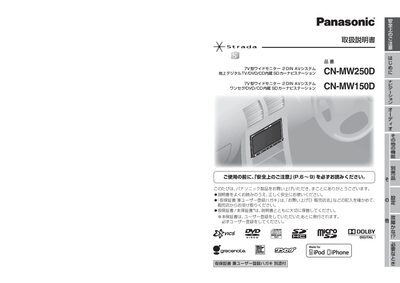

This manual provides instructions for installing and using the Panasonic CN‑MW250D and CN‑MW150D in‑vehicle navigation units. It explains the features such as high‑function navigation, 3D gyro, audio functions, and eco‑drive, and shows how to operate the system safely.
The document also contains extensive safety warnings, wiring diagrams, and a list of supplied accessories. It guides users on proper mounting, wiring, and maintenance to prevent fire, electric shock, or vehicle damage. This manual is written in Japanese.
| Power supply | DC12 V |
|---|---|
| Unsupported voltage | DC24 V (cannot be used) |
| iPod/USB cable length | 2 m |
| Memory card supplied | 8 GB SDHC |
The unit must be powered with DC 12 V and is intended for vehicles with a grounded (earth) system.
No, the unit cannot be used with DC 24 V as it may cause fire or damage.
Disconnect the battery before work, use only the supplied parts, avoid routing cables near moving controls, and ensure the GPS antenna cable is sealed against water.
