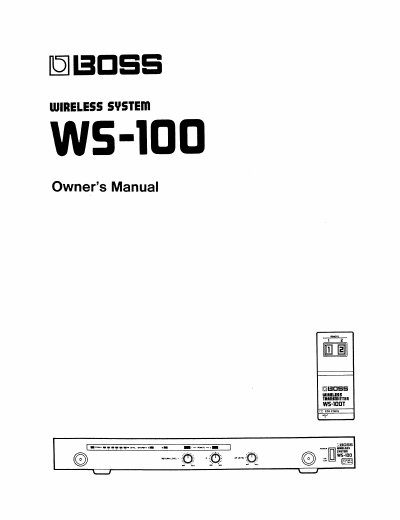

This manual covers the BOSS WS-100 Wireless System, which includes a transmitter (WS-100T) and a receiver unit. The system is designed for use with electric musical instruments and devices, featuring a realtime diversity reception system to ensure stable signal reception without dead points. It operates on frequencies over 200MHz to reduce electric wave interference.
| Frequency Range | over 200MHz |
|---|---|
| Battery Life | about 20 hours |
| Channel 1 Frequency | 169.445MHz |
| Channel 2 Frequency | 170.245MHz |
| Channel 3 Frequency | 170.905MHz |
| Channel 4 Frequency | 171.905MHz |
The diversity system provides two receivers in a case that automatically switch outputs depending on the receiving level to reduce noise or sound drop caused by interference.
To set up the unit in a rack system, remove the screws on both sides and the rubber feet, then attach the supplied angles.
The BOSS alkaline battery will last for about 20 hours, though this varies depending on usage.
