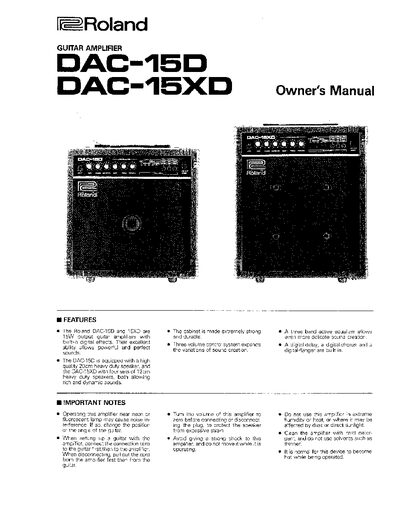

The DAC-15D and DAC-15XD are 15 W guitar amplifiers with built‑in digital effects, a heavy‑duty speaker cabinet, and a three‑volume‑control system for versatile sound shaping. The DAC-15D uses a single 20 cm speaker, while the DAC-15XD employs four 12 cm speakers, delivering rich and dynamic tones.
This manual covers safety instructions, panel layout, connection methods, control functions, digital‑effect parameters, and full technical specifications. It also explains how to set up the amplifier, use the built‑in effects, and perform basic maintenance.
| Output Power | 15W |
|---|---|
| Speaker Configuration | 20 cm × 1 (DAC-15D) / 12 cm × 4 (DAC-15XD) |
| Input Level / Input Impedance | -73 dBm / 480 kΩ |
| Power Supply Voltage | 117 V, 220 V or 240 V AC 50/60 Hz |
| Dimensions (DAC-15D) | 358 mm × 208 mm × 358 mm (14‑1/8" × 8‑3/16" × 14‑1/8") |
Connect the guitar to the Input Jack first, then plug the cable into the amplifier.
Read all instructions, avoid water, keep the unit ventilated, set Master Volume to zero before plugging or unplugging, and have qualified service personnel handle repairs.
Use the three Parameter knobs: the first controls Delay Time (45‑250 ms short, 200‑1000 ms long), the second controls Feedback, and the third sets Effect Level.
Set the Master Volume to zero before powering the unit on or off.
