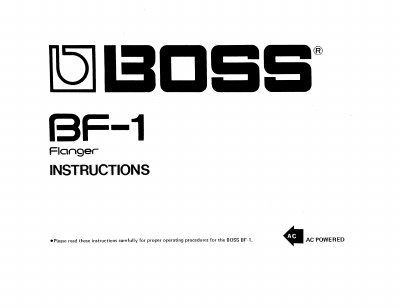

This manual provides operating instructions for the BOSS BF-1 Flanger, a guitar and keyboard effects unit. It details the functions of the Manual, Depth, Rate, and Resonance controls, as well as the Effect/Normal switch and input/output jacks. The document explains how to connect the unit to instruments like guitars, synthesizers, or tape recorders using the provided AC adaptor.
| Input impedance | 220KΩ |
|---|---|
| Output impedance | More than 600Ω |
| Frequency response | 20Hz - 20KHz |
| Delay time | 0.5ms - 16ms |
| Sweep oscillator rate | 20Hz - 100Hz |
| Gain | UNITY |
| S/N ratio | Better than 80dB |
| Dimensions | 115(W) x 65(H) x 205(D) mm |
| Weight | 650g |
The instrument jack receives output from guitar, synthesizer, electronic piano, and others.
Simply tread the Effect/Normal switch once to change to effect sound, and tread it again to return to normal sound.
The delay time can be varied between 0.5ms and 16ms.
