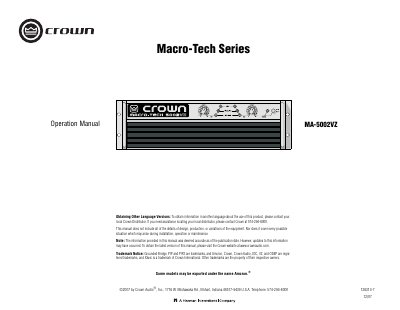

This document is the operation manual for the MA-5002VZ power amplifier, providing instructions and precautions for using the product. For information in other languages, users should contact their local Crown Distributor. The manual does not include all details of design, production, or equipment variations, nor does it cover every possible situation that may arise during installation, operation, or maintenance.
This document is the Operation Manual for the Crown MA-5002VZ Power Amplifier, part of the Macro-Tech Series. It provides instructions for unpacking, installing, and wiring the unit, including specific guidance for stereo, bridge-mono, and parallel-mono modes. The manual also details the front and back panel controls, startup procedures, and advanced features such as protection systems and circuit designs like Grounded Bridge and Variable Impedance (VZ).
| Product Type | Power Amplifier |
|---|---|
| Series | Macro-Tech Series |
| Output Wiring Class | Class 2 |
MA Series amplifiers require Class 2 output wiring.
It is recommended to locate the amplifier in the bottom of the rack.
