The document introduces the features and characteristics of the SM101 THRU SM107 series of diodes. The document covers the package, terminal, polarity, mounting position, weight, maximum ratings and electrical characteristics of the diodes.

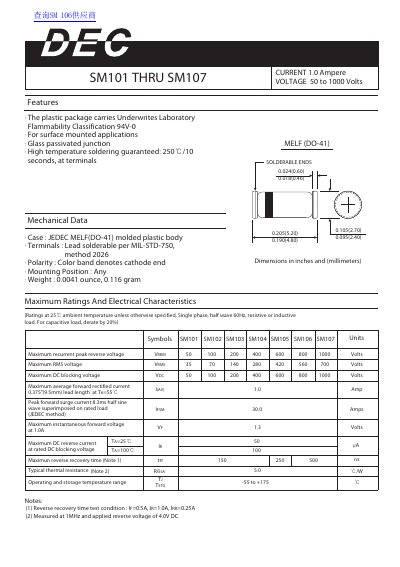

This document provides technical specifications for the SM101 through SM107 series of voltage rectifiers. These components feature a plastic package with Underwriters Laboratory Flammability Classification 94V-0 and are designed for surface-mounted applications using a Glass passivated junction MELF (DO-41) form factor.
The datasheet details maximum ratings such as peak reverse voltage up to 1000 Volts, average forward rectified current of 1.0 Amp, and peak forward surge current of 30.0 Amps. It also includes electrical characteristics like typical thermal resistance and operating temperature ranges from -55°C to +175°C.
| Voltage Rating Range | 0 to 1000 Volts |
|---|---|
| Package Type | JEDEC MELF(DO-41) |
| Operating Temperature Range | -55 to +175 Cc |
The device can handle a peak forward surge current of 30.0 Amps.
The unit operates and stores in temperatures from -55 to +175 C.
The rated maximum average forward rectified current is 10 Am.
