UFP1610 THRU UFP1660 is a high-power unidirectional silicon controlled rectifier with low forward voltage drop, high current, high reliability, low power loss, high efficiency, high surge current, high switching speed and low leakage.

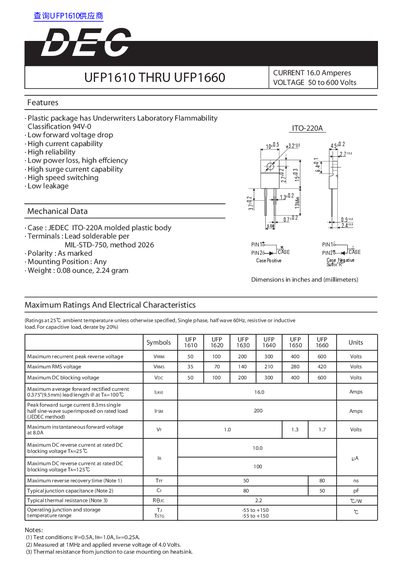

This datasheet covers the UFP UFP1610 through UFP1660 series of rectifiers. Key features include a plastic package with Underwriters Laboratory Flammability Classification 94V-0, low forward voltage drop, and high current capability. The devices are available in JEDEC TO-220A molded plastic bodies with lead solderable terminals.
| Maximum recurrent peak reverse voltage (VRRM) | 50 to 600 Volts |
|---|---|
| Peak forward surge current (IFSM) | 200 Amps |
| Maximum reverse recovery time (Trr) | 50 to 80 ns |
| Package type | JEDEC TO-220A molded plastic body |
The maximum average forward rectified current is 16.0 Amps when the lead length is 0.375 inches and the ambient temperature is 100°C.
The maximum peak reverse voltage for the UFP1660 model is 600 Volts.
The operating junction and storage temperature range is from -55 to +150 degrees Celsius.
