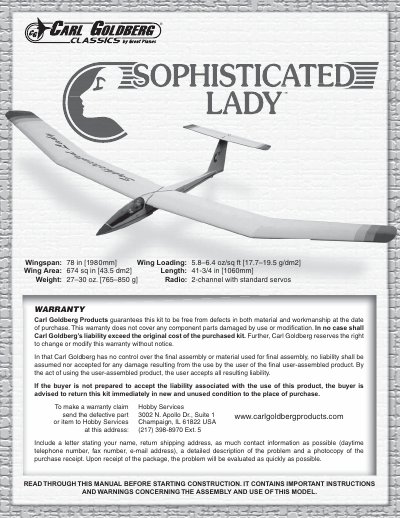

Carl Goldberg Sophisticated Lady Model Airplane Assembly and Operation Manual

This is a model airplane called “Model 1” produced by Carl Goldberg Company. The model has the latest technology and good flight performance.

Brand: CARL
Category: Other
Document type: User Manual
Language: English
Pages: 20
File format: PDF
File size: 1.5 MB
Published: 08 August, 2012
Updated: 30 September, 2023
MD5 checksum: E57A9A4C73ECAF31CAB95D527E66322B
PDF: Carl Goldberg Sophisticated Lady Model Airplane Assembly and Operation Manual PDF

About this manual

The Sophisticated Lady is a two-channel ARF (Almost Ready to Fly) model airplane kit designed for thermal soaring and contest flying. The manual covers the assembly of the wing, fin, and stabilizer, as well as the installation of the radio system and canopy. It includes specific instructions for gluing components using epoxy and CA glue, along with safety warnings regarding the final assembly liability.

What's inside

Additional Items Required
Assemble the Wing
Install the Fin
Install the Stabilizer
Finish the Sailplane
Check the Control Directions
Balance the Model
AMA Safety Code
Your First Hi-Start Launches
Thermal Flying

Specifications

Wing Span	78 in [1980mm]
Wing Loading	5.8-6.4 oz/sq ft [17.7-19.5 g/dm2]
Wing Area	674 sq in [43.5 dm2]
Length	41-3/4 in [1060mm]
Weight	27-30 oz. [765-850 g]
Radio System	2-channel with standard servos

Frequently asked questions

What type of glue is recommended for assembly?

The manual recommends Great Planes Pro CA glue, along with specific epoxy types for different curing times.

What are the stated wingspan and weight limits for the Sophisticated Lady?

The model has a wingspan of 78 inches and weighs between 27 and 30 ounces.

What radio equipment is required to operate the Sophisticated Lady?

The airplane requires a two-channel radio system with standard size servos.

How much epoxy should be mixed when joining the wing halves?

You must mix up exactly 1/2 oz of 30-minute epoxy to join the wing.
